Description

1. Built in with Intel Core i3-4010 Dual Core 1.3G
2. 2*DDR3L SO-DIMM sockets, supporting up to 16 GB of system memory
3. Support 1.35V DDR3L 1600/1333 MHz
4. Support Dual Channel NB Memory SO-DIMM DDR3L
5. Intel HD Graphics 4010 ( i3-4010Y)
6. 1*HDMI,supporting a maximum resolution of 2560*1600>
7. 1*VGA,supporting a maximum resolution of 1920*1080

These main boards are built with low power, high speed CPU. Based on Intel Core HasWell platform with the fourth generation of I3 cpu. Mainly used in finance, education, medical, retail, hotel, one machine, advertising machine, industrial computer, digital signage, self-service terminal, security monitoring, digital HD and other fields. Support dual M-sata, WIFI, LVDS, HDMI, VGA and other super HD display Main characteristics Choose the low power cpu Intel Core i3-4010 Dual Core 1.3G ; High-speed, support up to 16GB of system memory Built in with dual 24 bit LVDS,supporting a maximum resolution of 1920×1080, support dual display. Support 12V input,the first choice for Advertising machine and all in one pc. built with 2xMini-PCIE, support WIFI, support M-sata ; Run 7x24H 1COM ,2COM.6com are optional. 6COM support RS485/422,dual lan motherboard with 6COM will be the first choice of industrial computer. Support HDMI , DC_IN. The upgraded version can support LPT and Spdif audio.
CPU |
1 Built in with Intel Core i3-4010 Dual Core 1.3G |
Memory |
2 2*DDR3L SO-DIMM sockets, supporting up to 16 GB of system memory 3 Support 1.35V DDR3L 1600/1333 MHz 4 Support Dual Channel NB Memory SO-DIMM DDR3L |
Onboard Graphics |
5 Intel HD Graphics 4010 ( i3-4010Y) 6 1*HDMI,supporting a maximum resolution of 2560*1600 7 1*VGA,supporting a maximum resolution of 1920*1080 |
Audio |
8 Built in with Realtel ALC662 HD Audio Controller 9 Support High Definition Audio 10 Support 2/4/5.1 channel * To configure (Through HDMI) |
LAN |
11 Realtek RTL8111E LAN chips |
Expansion Slots |
12 2*MINI PCI Express slot (The Mini PCI Express slot conforms to PCI Express 2.0 standard, support WIFI&BT modules and mSATA card) |
USB |
13 2*USB 3.0 14 2*USB 2.0 15 3*USB 2.0(need to expand) |
Internal I/O Connectors |
16 2*MINI PCIE 17 1*F_Panel 18 1*CPU_FAN 19 1*SYS_FAN 20 2*SATA 21 1*SATA_PWR 22 1*COM 23 1*COM_SET 24 1*LVDS 25 1*LVDS_PWR 26 1*SPEAKER 27 1*ATX_12V 28 1*CLR_CMOS 29 1*VGA_H1 30 1*JHDMI1 |
Storage Interface |
31 2*SATA 6Gb/s SSD/HDD 32 1*mSATA |

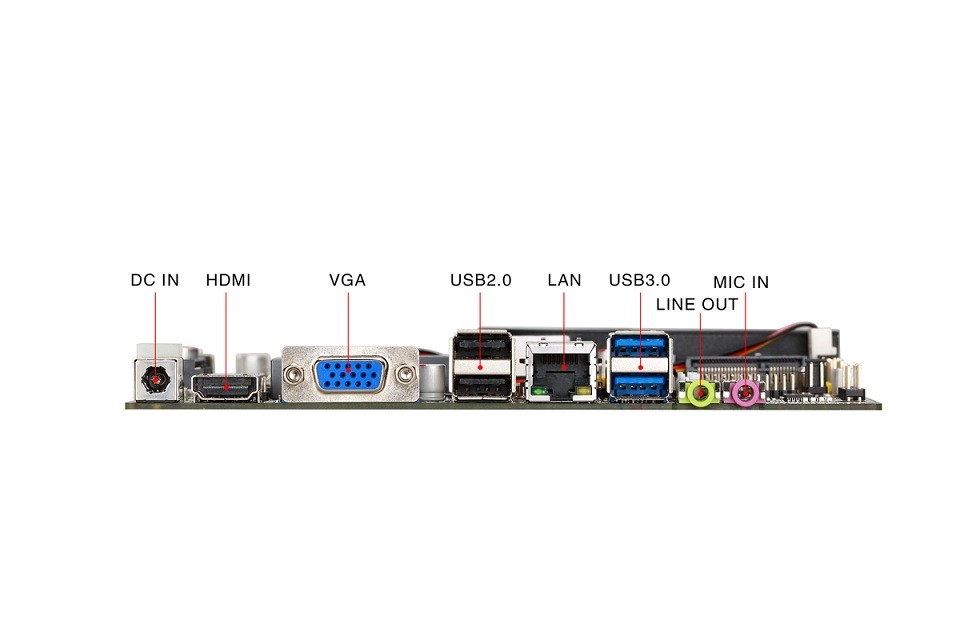

Back Panel Connectors |
33 1*DC_IN 34 1*HDMI 35 1*VGA 36 2*USB2.0 37 1*RJ45 38 2*USB3.0 39 1*HP_OUT 40 1*MIC_IN |
BIOS |
41 AMl EFI BIOS |
Power Supply |
42 12V adapter |
Operating System |
43 Support Windows 8.1/8 32-bit/64-bit 44 Support Windows 7 32-bit/64-bit 45 Support Windows ES 7/8 46 Support Windows 10 |
Form Factor |
47 170mm*170mm |
|
