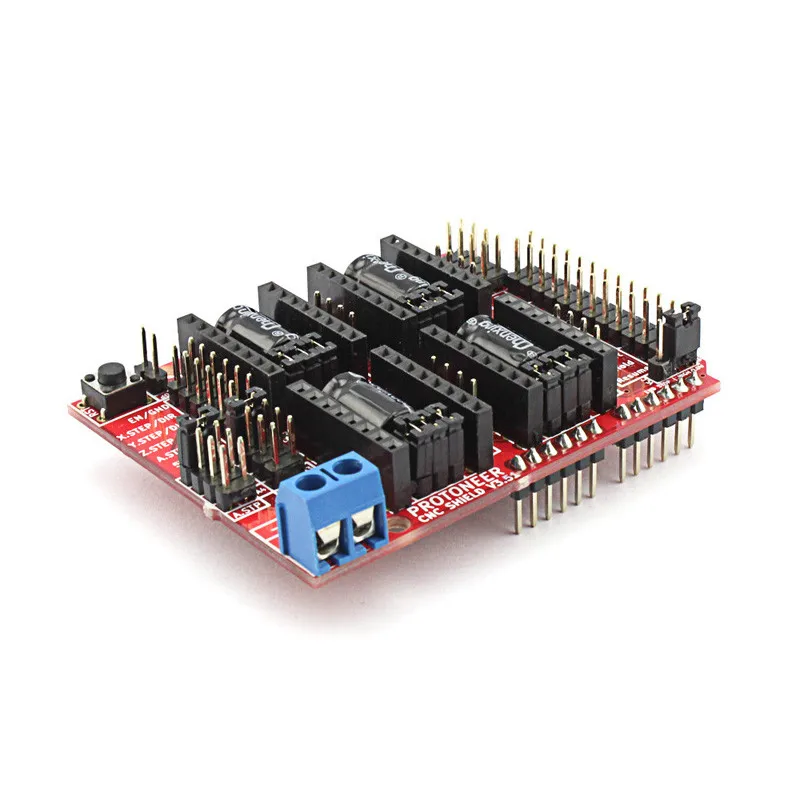

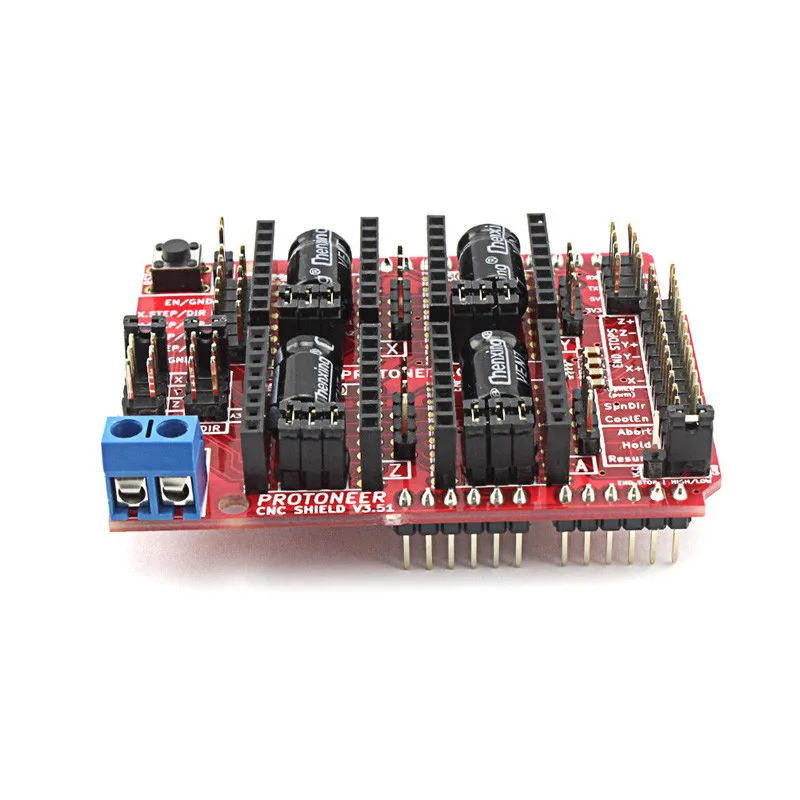

Elecrow New Development Board CNC Shield V3.51 for Arduino 3D Printer Micro Controllers GRBL v0.9 Compatible Uses Pololu Drivers

Elecrow New Development Board CNC Shield V3.51 for Arduino 3D Printer Micro Controllers GRBL v0.9 Compatible Uses Pololu Drivers

$20.99

Compare
Category: .
  • Description
  • Additional information

Description

High Quality New Development Board CNC Shield V3.51 for Arduino 3D Printer Micro Controllers GRBL v0.9 Compatible Uses Pololu Drivers DIY Kit

Our seller warranty guarantees that your purchase is 100% risk-free. If for some reason your purchase doesn’t work, We will provide immediately Support. We are committed to 100% satisfaction of our customers. If you find any issue with the product, please feel free to contact us. We will fulfill your request promptly, hassle-free.

Note:

User Guide and Tech Support:

(please contact us directly by email or anyway suits you. We will provide you with professional service.)

Description

Ever wanted to build a small CNC router or CNC milling machine? Love working with Arduino Micro Controllers?
What projects can this be used for?
Small CNC routers, DIY Laser Cutters, 3D Printers and almost any project where you need to control a stepper motors with high precision.
At Protoneer we designed this simple for Arduino CNC shield kit (for Arduino Extension Board) with the following features:

New with Version 3.51:
Added circuitry for End-Stop and Probe signal filtering. This eliminates false triggers and makes it possible use non-shielded cable for end-stops/probes.
Bigger Solder pads making it easier to assemble.
Probe pin labels have been updated to make it easier to install a probe.

Features

Includes Noise Filers on all endstops and the probing pin.(New in V3.51)
GRBL 0.9 compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals https://github.com/grbl/grbl)
4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins A4 and A3)
2 x End stops for each axis (6 in total)
Coolant enable
Uses removable Pololu A4988 compatible stepper drivers. (A4988, DRV8825 and others)(Not Included)
Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )
Compact design.
Stepper Motors can be connected with 4 pin molex connectors or soldered in place. .
Runs on 12-36V DC. (At the moment only the Pololu DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)

Package list

CNC Shield V3.51 – GRBL v0.9 compatible – Uses Pololu Drivers x 1

About Us

Elecrow is an open hardware facilitation company based in Shenzhen, . Benefiting from the largest electronic market, local manufacture power and convenient global logistic system, a vast number of funny and exciting products are created every day. We integrate resources to serve new era of innovation.

To make your making and innovation easier, we offer various development platform, modules, tools, electronics components,and other open source hardware.we also provide many kinds of service ,include Fusion PCB service, Component Sourcing service and PCB Assembly service etc.

No matter whether you’re a curious student, a qualified engineer, or a hobbyist who loves to create, there will always be something here to meet your needs – and if there isn’t ,we’d love to know. please Feel free to contact with us.

Customer Satisfaction
  1. Since your feedback is very important to our business`s development, we sincerely invite you to leave positive feedback and 5 stars for us if you are satisfied with our product and service.

  2. For any reasons, you are not satisfied with the items or services, please feel free to contact us first before you leave negative feedback. We will do our best to solve the problems and provide you with the best customer servcies.

Warranty & Return
  1. We do our best to serve our each customer the best that we can do.

  2. We will refund you for items returned within 7 days of you receiving them, for any reason. A full refund will be given if items are returned in their original condition.

  3. We provide 1 month replacement and 12 months maintenance warranties. Items be replaced during the first month or maintained for the first year.

  4. Before returning items, please contact with us and make sure you get our (the seller’s) return address

Payment

We accept payment through Credit Card, paypal or anyway that supports.

Shipping
1. We support world wide shipping with tracking number(Registered airmail) and express(DHL/FEDEX/UPS/EMS).
2. Shipping cost: Click “Shipping and payment” tab on the product detail page, and you will see the delivery details. You can calculate shipping cost by inputting the required information.
3. Time in transit: Transit time varies with different s.

Carrier Name Estimated Time in Transit from to Destination Tracking Service
3-5 business days www.dhl.com
3-5 business days www.fedex.com
3-5 business days www.ups.com
5-10 days www.ems.com.cn
7-25 days www.post.com

4. Order Processing Time: Orders will be processed within 1-2 business days after payment is cleared.

Tech support
Technical support is to help suggest products to purchase and ensure that those products are working as expected.

Additional information

is_customized

Yes

Brand Name

ELECROW E

Model Number

CDP03051C

Rohs complaint

Rohs

item weight

33g
